Yeni TyreON TL27LC 2 Sütunlu Araba Asansörü

The price is excluding VAT and delivery costs.
Capacity mobile 2 post lift 2700 kg
Lifting height 10,5 - 140 cm
Vehicle type Narrow to wide, short to long
Lifting arms 745 - 1450 mm (telescopic)
Column height 183 cm (permanent)
Distance outside columns 150 - 350 cm (choose yourself)
Vehicle width 50 - 250 cm
Weight 1 column 175 kg (mobile)
Mobile columns Each column has 2 handles, 2 wheels,and 45 degree support leg with 2 wheels
Floor anchors with thread Repeatedly (dis)assembling columns with screw bolts
Hydraulic quick couplings On both columns and on both hydraulic hoses
Lifting arms of the mobile two post car lift With pinhole connections
► Easy to install / store (10 min)
► Distance between columns of your choice
► Compact mobile controller (detachable)
► Lifting arms are easy to install / remove
► Floor anchors with internal thread
► Hydraulic synchronization by patented flow divider
► Automatic safety locks at 13 positions every 5 cm
► Safe, first unlock manually before the lift can be lowered
► Lock function / 13 parking positions
► Heavy duty lifting cylinders and leaf chains
► Door protection rubbers
► Protective caps in the columns
► Maintenance-free, self-lubricating sliding blocks
► Foot protection brackets on the 4 lifting arms
► Powdercoated
► Fully lift in 60 seconds
► Required ceiling height: 190 cm or higher
Delivery includes Plug-in adapter set - 8 cm high
2-stage lifting pad set - 7 cm adjustable
Set of long hydraulic hoses with quick couplings
Set of installation materials
Installation and users manual
Video - first use / installation
Foundation Min. 11 cm thick reinforced concrete C25/20
Voltage 230V / 1 phase - C16A fuse (16 ampere)
Certification mobile 2 post car lift CE / TÜV directive EN1493:2022 Vehicle lifts
Packed in iron transport frame L187 x B90 x H65 cm - 641 / 661 kg
Hydraulic oil is not included to the mobile two post lift 6 Liter HV-ISO-32 is optional
Promo, free Set of 10 internally threaded impact anchors and corresponding screw bolts
Promo, free Two positioning lasers with a red light beam from both columns for central placement of the car
Set of 10 internally threaded impact anchors and corresponding screw bolts - (normal €150,-)
2 positioning lasers to mark the lane with a red laser beam - (normal €180,-)

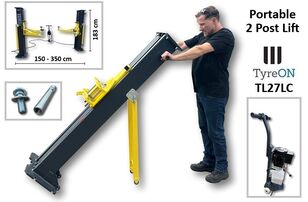

Portable 2 post lift
One person maneuvers the portable two post lift with remarkable ease.Thanks to the recessed anchors with internal threads, a controller equipped with hydraulic hoses with quick couplings, and easily removable lifting arms, the floor is cleared of obstacles within 10 minutes.To remove the columns from the mobile car lift, the bolts are loosened, leaving the floor anchors in the floor, ready to be reused.
TyreON TL27LC portable two post lift
The TyreON TL27LC's columns are mobile, and the entire lifting system can be easily installed or quickly removed if more space is needed.
The compact mobile controller is equipped with a power unit and an oil tank, and the hydraulic hoses with quick couplings can be conveniently wrapped around the handle.
The two lifting arms are easy to install and remove, as they feature pin-and-hole connections.
This portable two post lift is a unique and highly versatile portable car lift for workshops and garages, even with a low ceiling of at least 190 cm or a concrete floor of 11 cm or thicker.
The lifting height ranges from 125 to 140 cm, and the mobile lift comes standard with four double-adjustable plug-in lifting pads and four plug-in height adapters.
The ingenious design offers all the benefits of a full-fledged car lift, including access to the underside of the engine, gearbox, driveshafts, starter motor, and more.
No other mobile 2 post lift offers as much space under the car and as much free floor space as this mobile car lift.
Thanks to its variable-length telescopic lifting arms and the adjustable column spacing, the TL27LC mobile 2 post lift is suitable for short, long, narrow, and wide vehicles up to 2700 kg.
With a minimum lifting height of 10.5 cm, it is also suitable for cars with low ground clearance.
The four lifting arms can be easily positioned under the car in the lowest position.
The gear-operated arms lock automatically when raised and unlock automatically when the lift is fully lowered.
Easily lift with a push button and lower with a lever on the mobile controller.
The lever also serves to lower the car lift into the locks (parking function).
With a connection voltage of 230 volts / single phase and a connection load of 16 amps, this mobile lift fits any circuit in the fuse box.
Extra safety: The portable two post lift can only be lowered after a steel cable has been pulled on each column.
Only then does the lever function to lower the lift.
This prevents someone from lowering the lift while another person is underneath the car on it.
The TyreON TL27LC mobile car lift is equipped with ultra-high molecular weight polyethylene slide blocks.
These slide blocks are self-lubricating, maintenance-free, and will last the entire life of the lift.
The columns are made from a single piece of steel for optimal resistance to heavy loads.
Both columns are equipped with a high-quality hydraulic cylinder, featuring steel pistons and piston seals, backups, and wear bands that virtually eliminate oil bypass.
The chrome-plated piston rods are made of high-quality plated steel to ensure long service life.
Heavy-duty leaf chains, similar to those used on forklifts, ensure smooth lifting of the load.
To ensure synchronous lifting and lowering of both columns, the lifting system is equipped with a patented hydraulic flow divider, which precisely distributes the hydraulic force flow between the two columns, even with uneven load distribution.
An internal spool adjusts the size of an internal oil outlet based on changes in oil pressure, ensuring consistent flow rates in the two hydraulic hoses.
The floor must be made of at least 11 cm thick reinforced concrete type C25/20.
Always check the floor for cracks or damage.
Optional - promotion, the options are temporarily included free of charge
From each column of the mobile 2 post lift, a red laser beam shines onto the ground to assist in centrally positioning the vehicle between the columns.
Internally threaded anchors and the corresponding bolts are temporarily supplied free of charge.
The anchors are 15 cm long and 22 mm in diameter.
After drilling the holes in the floor, the anchors are hammered into place.
The two columns are then secured with the bolts.
To remove the columns from themobile 2 post lift, the bolts are loosened, leaving the floor anchors in the floor, ready to be reused.
